Suzhou Handrin Robot Technology Co., Ltd., with the brand name GS Eoat, on showed standard grippers and other spare parts for robotic arms EOAT assembly at Chinaplas 2025 with 6 axis servo industrial robot.

The robotic arm EOAT is a tooling to pick the parts from the injection molding machine or other stations in an automation system according to the structure and shape of the parts to finish the production process atuomatically. It would be assembled from a variety of different parts like buffer fitting, function executive element etc. The GS standard grippers will help to projector to assemble the EOAT easily like play a LEGO building block. A regular sets of EOAT will include:

Function Executive Element
Buffer Fitting
Fast Switching
Accessories
Pneumatic Finger Pick
Air Nippers
Sprue Gripper
Vacuum Cups
Fixture Modular Assembly

to finish the production process like parts picking, plastic parts sprue cutting, polishing, welding etc.

With the GS standard modular EOAT parts, the engineer who is designing a tooling for an injection automation system will be able to formulate an EOAT design for his project quick and easy for installation.

Hybrid Injection Molding Machine for Laboratory Consumable Petri Dish Injection Molding -- HD130LDY-B

HD130LDY-B

HD130LDY -- HaiDa Hybrid Injection Molding Machine

No.	Name	Value
1	Clamping Force	1300 kN
2	Shot Weight	147 g
3	Shot Speed	200 mm/s
4	Screw Diameter	36 mm
5	Opening Stroke	380 mm
6	Space Between Tie Bars	420 x 420 mm
7	Mold Thickness (Min)	150 mm
8	Mold Thickness (Max)	450 mm
9	Pumper Motor	49 kW
10	Heating Capacity	7.5 kW

Injection Automation Application -- Side Entry Petri Dishs Injection Molding Automation Solution

SIDE ENTRY PETRI DISH PACKING SOLUTION

Introduction of SWITEK Side Entry Petri Dish Packing System

The SWITEK side entry petri dish packing system is a custom made automation system for the stable production of laboratory consumable plastic petri dish with the picking robot, the petri dish assembly, stacking, packing unit etc. integrated as auniformed system for the efficient and stable production of the petri dish. The system can be custome made for a petri dish mold layout design of 2+2, 4+4, 6+6, 8+8 etc.

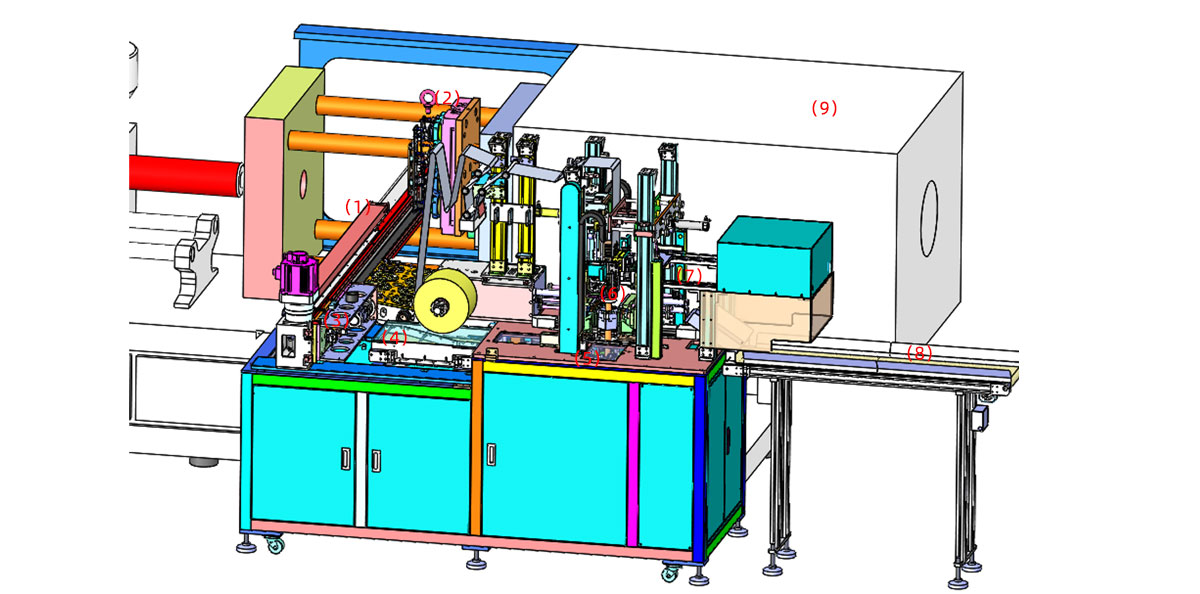

Functional Units of SWITEK Top Entry Petri Dish Packing System

(1) -- Side Entry Robotic Arm: The picking arm of the packing system in handling the picking of the petri dish from the injection molding machine and place them on the assembly unit.
(2) -- Injection Mold: The core injection unit to shape the petri dish, it can be 2+2, 4+4, 6+6, 8+8 configuragion of the petri covers and bottoms.
(3) -- Petri Dish Assembly Unit: Have the cover and bottom of the petri dish assembled and drop it on the conveyor.
(4) -- Sorting Conveyor: Lined the assembled petri dish sets for stacking before packing.
(5) -- Stacking Station: Have the well assembled petri dishes stacked up as requested (5/10/15/20/25 sets etc.).
(6) -- Petri Dish Packing Unit: Have the well stacked petri dish packed and sealed with optional function of vacuume the bag.
(7) -- Petri Dish Transfer Robot: Catch the well sealed petri dish bag and drop it to the conveyor.
(8) -- Petri Dish Dropping Conveyor: Deliver the well packed petri dish.
(9) -- Injection Molding Machine: The injection unit of the whole syste.

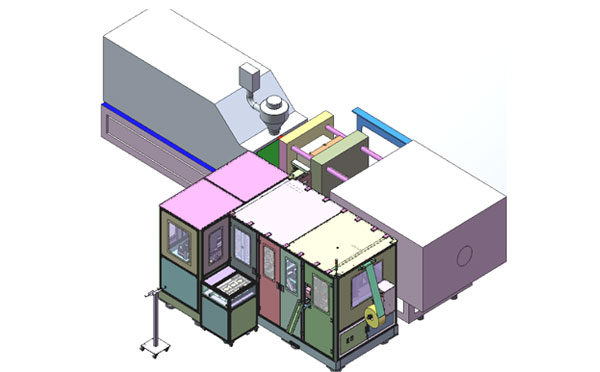

Installation Dimension of SWITEK Side Entry Petri Dish Packing System

Productivity of SWITEK Side Entry Petri Dish Packing Solutions

Vacuumed Sleeve Packing

10 Sets/Bag --Injection Cycle time: 9s
20 Sets/Bag --Injection cycle: 6s
25 Sets/Bag --Injection Cycle: 5.5s

Non-vacuumed Sleeve Packing

10 Sets/Bag --Injection Cycle time: 6.5s
20 Sets/Bag --Injection cycle: 6s
25 Sets/Bag --Injection Cycle: 5.5s

Mold Layout Design & Sleeve Size for the Petri Dish Packing System

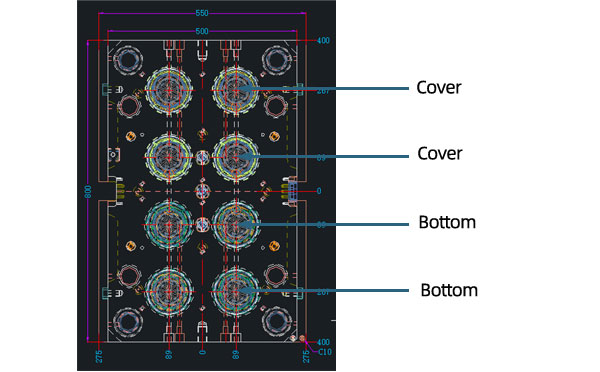

Mold Layout Deisgn

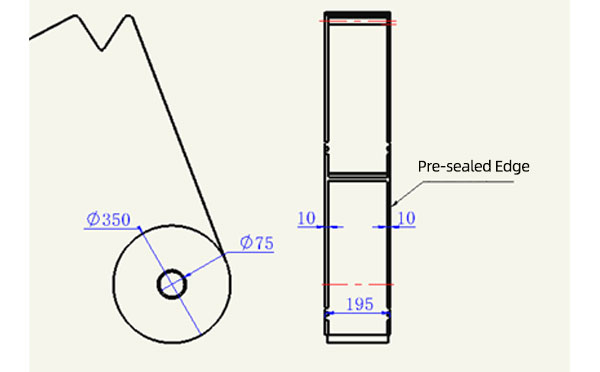

Sleeve Size for Package with Vacuum Request

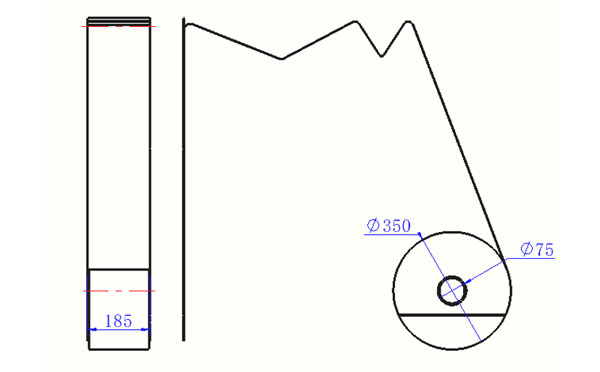

Sleeve Size for Package without Vacuum Request

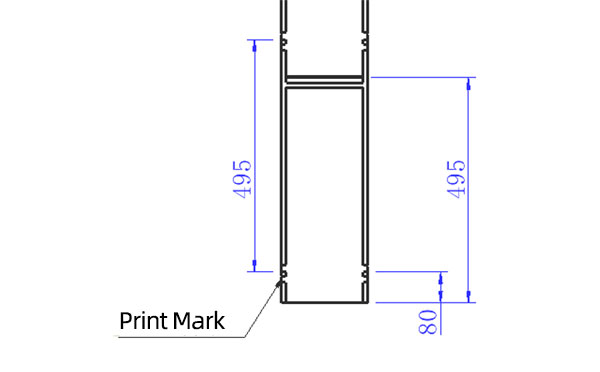

Sleeve (With Mark) Size for Package with Vacuum Request

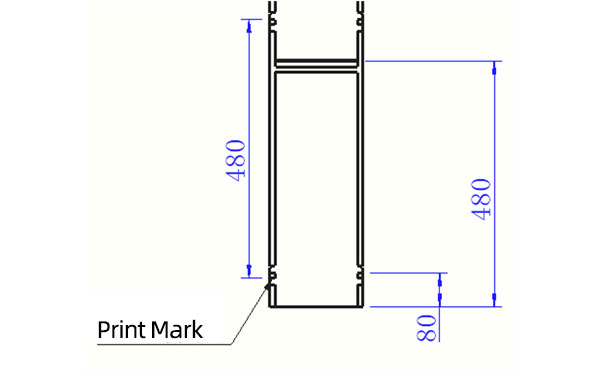

Sleeve (With Mark) Size for Package without Vacuum Request

I think you'll have an overall understanding about the SWITEK top/side entry petri dish packing system. If you still have any other question about it or need any help in your petri dish production project, please feel free to contact SWITEK laboratory consumable plastic parts injection molding solutions team for more information.
