260SEIII -- Welltec High Performance Energy Saviting Servo Injection Molding Machine
The 260SEIII is the high performance energy saving servo injection molding machine with clamping force 2600kN of the WELLTEC SEIII series hydraulic injection molding machine. The new generation of WELLTEC high performance energy saving servo injection molding machine has an opening stroke increased by up to 15%, the ejector stroke increased by up to 20%, mold thickness increased by up to 15%, max.daylight increased by up to 55%, ejector force increased by up to 40%. With these new parameters upgrading, the new generation of 260SEIII will provide the PPR pipe fittings producers more space for complex mold design and robotic end of arm tools.
The Dimension of Welltec 260III High Perforamnce Energy Saving Servo Injection Molding Machine
Unit: mm
| A | B | C | D | E | F | G | H | I | J | K | 1961 | 1757 | 2185 | 5030 | 6072 | 1417 | 1462 | 810 | 800 | 852 | 731 |
|---|
The Platen Size of Welltec 260SEIII Energy Saving Servo Injection Molding Machine
The SWITEK 8 cavities PPR pipe fittings brass in mold insertion and runner cutting system is an automation solution designed for the production of the direct connecting PPR pipe fittings with brass. The production of the PPR pipe fittings include the brass layout and feeding, the parts picking, the brass in mold inserting, the runner cutting for an unmanned production of the PPR direct connecting pipe fittings.
Have the WELLTEC 260SEIII high performance injection molding machine for the injection molding of the PPR pipe fittings is suitable for a mold configuration of 8 cavities design, which is an economic solution of the PPR pipe fittings with an automation system for a perfect balance of the investment and turn-out. The automation system has a SWITEK 3 axis servo injection robot SW6710S for the picking of the parts and brass in mold insertion.
P300E -- YIZUMI All Electric High Speed Injection Molding Machine and IML Application
| No. | Name | Value |
|---|---|---|
| 1 | Clamping Force | 3000 kN |
| 2 | Shot Weight | 237 g |
| 3 | Shot Speed | 300 mm/s |
| 4 | Screw Diameter | 40 mm |
| 5 | Opening Stroke | 610 mm |
| 6 | Space Between Tie Bars | 635 x 635 mm |
| 7 | Mold Thickness (Min) | 250 mm |
| 8 | Mold Thickness (Max) | 650 mm |
| 9 | Pumper Motor | 17 kW |
| 10 | Heating Capacity | 16 kW |

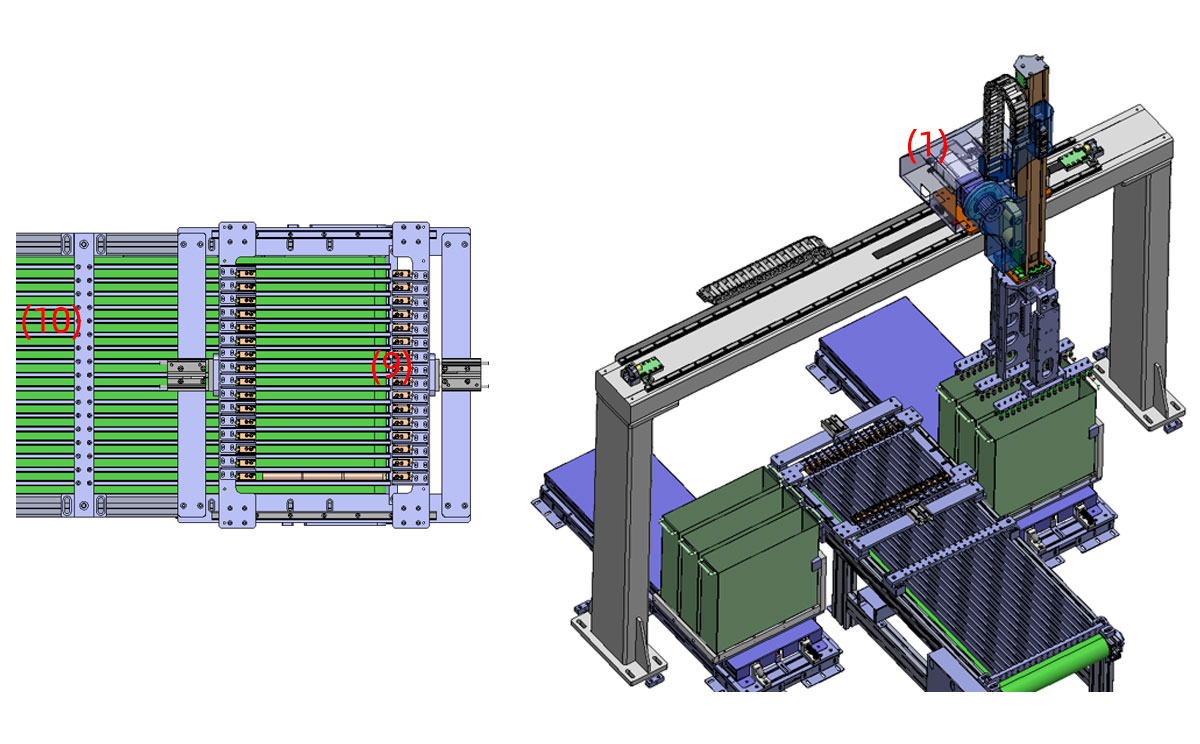

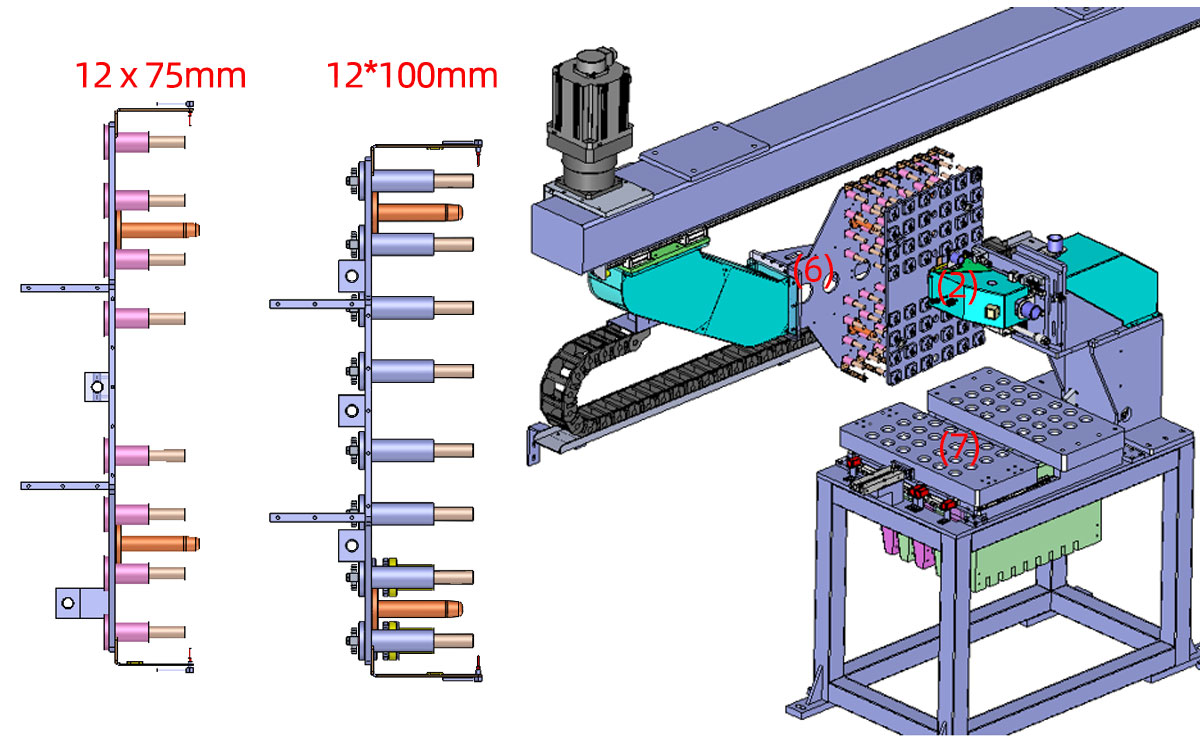

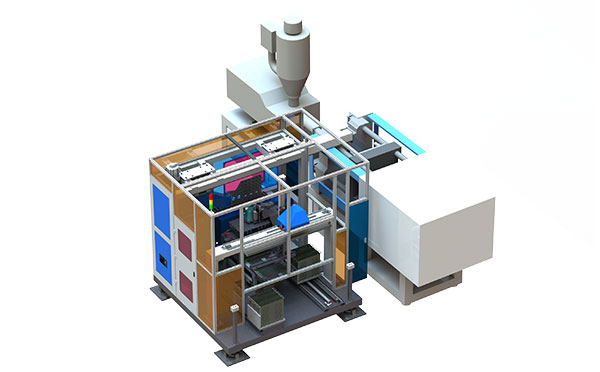

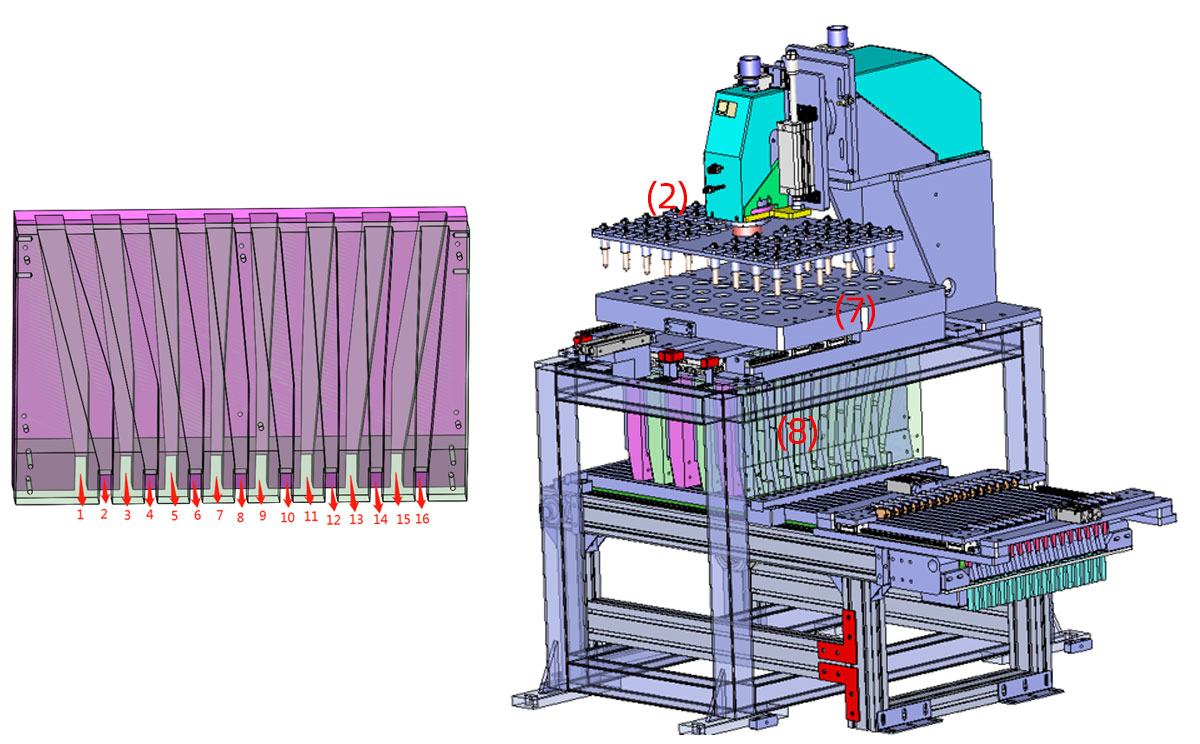

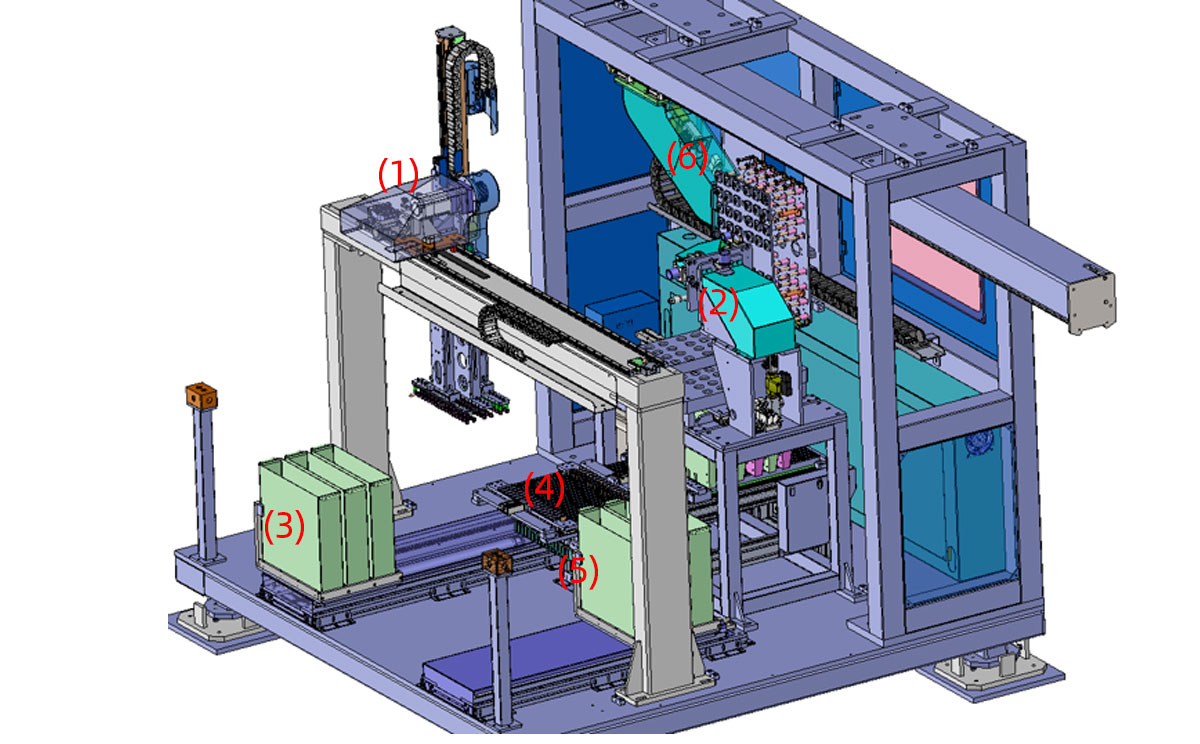

SWITEK laboratory consumable testing tubes collecting solutions is an integrated automation system of the laboratory consumable testing tubes injection molding which include the testing tubes picking robot, testing tubes sorting, collecting and have them loaded in plastic bags for vacuum and packing.
Parameters of SWITEK Testing Tubes Collecting System
To reduce the risk and cost of system purchasing, the best way is to have a turn-key solution of the laboratory consumable testing tubes which we'll ensure that the mold design is friendly to the automation system and maximize the productivity of the system. With a turn-key solutions, SWITEK will have the mold tested with the automation system to ensure that the system delivered is ready to work.
