EOAT FOR LABORATORY CONSUMABLE PARTS PICKING

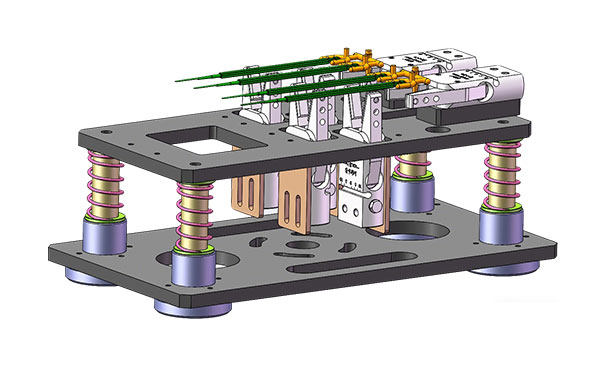

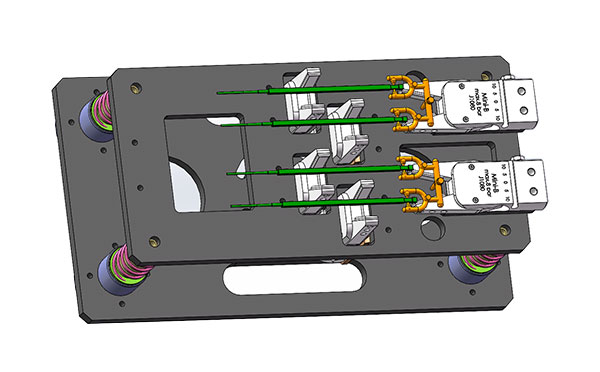

About SWITEK Eoat for Laboratory Consumable Parts Picking

The EOAT for laboratory consumable parts picking are the EOATs custom made for the parts picking in the production of laboratory consumable parts. But for most of the consumable parts used in a laboratory are highly transparent parts and some of they are tinny parts, so the EOATs designed for the parts picking has some special requirements include but not limited to:

Free from any scratch on the surface of the parts in picking.
Free from any marks left on the surface of the parts after dropping.
Suitable size to ensure a success picking of the parts from the mold.
Reliable repeatability accuracy.

SWITEK R&D team of the laboratory consumable division will design the EOATs which will ensure the highest quality standard of the parts picked.

Injection Molding Machine Suitable for Laboratory Consumable Parts Injection Molding -- EM130-C315H-A

HMD allelectric Injection Molding Machine

EM130-C315H-A

HMD EM130 -- HWAMDA High Speed All Electric Injection Molding Machine

No.	Name	Value
1	Clamping Force	1300 kN
2	Shot Weight	117 g
3	Shot Speed	350 mm/s
4	Screw Diameter	32 mm
5	Opening Stroke	400 mm
6	Space Between Tie Bars	470 x 470 mm
7	Mold Thickness (Min)	150 mm
8	Mold Thickness (Max)	500 mm
9	Pumper Motor	35 kW
10	Heating Capacity	0 kW

Robotic Arm Recommended for the Picking of Laboratory Consumable Parts

SW5512D -- High Speed Double Arms Top Entry IML Robot for Lids

Unit:mm

X1	X2	X4	X5	Y	Z	YM1	YM2	W	L	H	HS
710	300	300	135	1200	1700	490	710	1450	3200	1950	620

The SWITEK SW5512D is a double arms high speed industrial robot with payload up to 5kg suitable for injection molding machines with clamping force up to 5000kN. It can be the picking robot for the parts produced with a standard two plates mold or a cold runner 3 plates mold design project. It can be also the picking robot in a stack mold laboratory consumable parts injection production project. The best picking robot for small an medium size producer of the laboratory consumable parts which has a variety of molds for each injection molding machine.
